S-150

Quick, Nimble
and Productive

S-500

Versatility in Action

S-600 / S-800

Sturdy, Productive
and Reliable

side / rear discharge tender

exceptional
capacity

  • S-150
  • S-500
  • S-600 / S-800
  • Side and Rear-Discharge Tender

Designed specifically for orchard and turf use, the dual-spinner Willmar S-150 pull-type spreader fits the precision pattern needs of smaller applications. The optional orchard deflectors are designed to place the bulk of the material at the center of orchard rows.

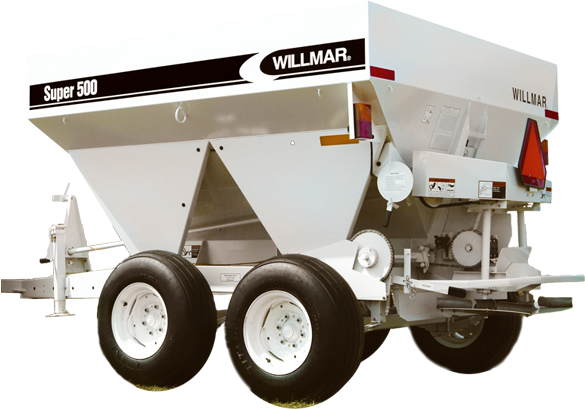

With up to 12 wheel-track options including a narrow track frame option (S-500NT), the mid-size, 5-ton (4536 kg) S-500 is versatile enough to adapt to nearly any situation on small or large farm operations. Add to the versatility of the S-500 with one of two different PTO drives or with the optional 8-hp (5.9 kW) engine for driving the spinner system.

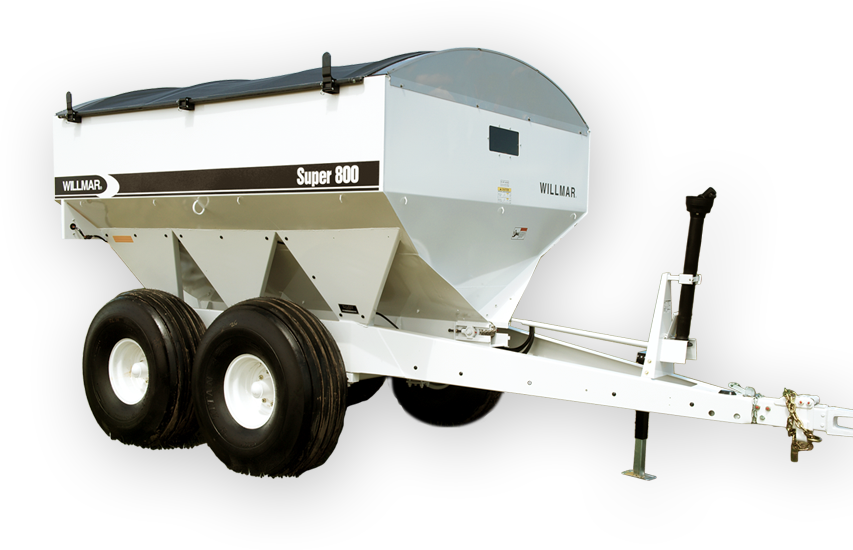

Spend more time in the field and less time loading up. Ideal for large farm operations and retail fertilizer plants, the S-600 and S-800 features 6- (5454.5 kg) or 8-ton (7272.7 kg) capacities respectively, an optional 8-hp (5.9 kW) engine for driving the spinner system, braking for improved safety and heavy-duty hitches with safety chains. Narrow track frame option is available on the S600NT.

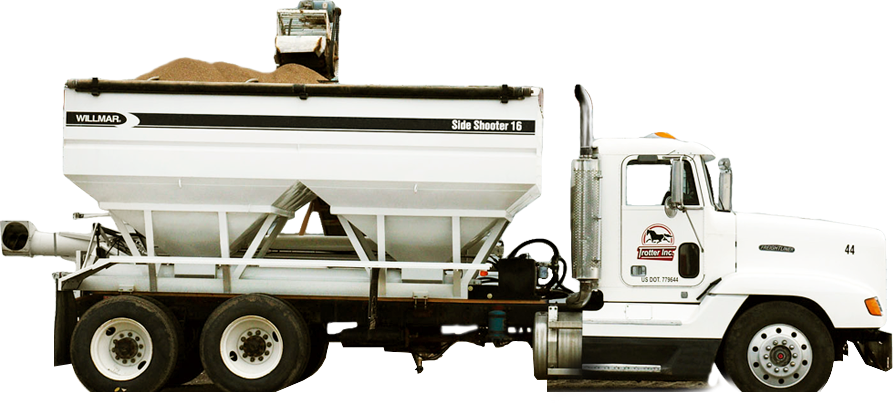

When you have a lot of material to move, using the right tender can make all the difference in your bottom line. Fast and efficient unloading translates into convenience and profitability in the fertilizer tender business. Willmar’s 16 and 24-ton side-discharge tenders move up to two tones of material a minute. Willmar's truck or trailer-mounted 10 and 16-ton tenders are ideal for commercial fertilizer dealers, custom applicators and large farming operations.

|

Corrosion Resistant Materials

Every Willmar spreader is designed with corrosion-resistant phenolic flooring so material moves smoothly, reducing build-up and extending the life of the conveyor chain. A chemical-resistant, epoxy-based rust-inhibiting primer and super-tough, acrylic urethane finish work together to protect and extend the life of the spreader.

Consistent Conveyor Systems

Every Willmar spreader is equipped with two-speed conveyor belt that provides an application rate of less than 100 lbs. per acre to over 2,000 lbs. per acre. The chain and sprocket conveyor ground drive system maintains a consistent relationship between ground speed and conveyor speed insuring precise application of materials even in moist condition. A slip clutch sprocket assembly is incorporated to prevent damage to drive components

Equal Load Distribution

A multi-leaf, spring suspension system with rocker arms positioned on both sides of each axle reduces bounce, improves stability and provides a smooth ride for a consistent spray pattern. The suspension system allows you to unhook from the spreader without the risk of tilting or tipping over.

Accurate Spread Pattern

Willmar spreaders are available in single- or dual-spinner configurations. The single spinner has a 65-ft. (19.8 m) total spread pattern width using a single-pass, flat-type pattern which helps reduce the number of passes across a field for more economical operation.



Dual-spinner models are available with 40- (12.2 m) or 50-foot (15.2 m) that delivers an 80- or 100-foot spread, respectively, that creates a pyramid-style spread pattern with 100% overlap which reduces spread pattern variations due to wind and rough terrain.

Corrosion Resistant Materials

Consistent Conveyor Systems

Equal Load Distribution

Accurate Spread Pattern

See all the Willmar Features

Download a PDF in ENGLISH or FRENCH

Compare Willmar with Other Brands

See how Willmar models stack up against the competition

easy access, Quick cleanout

Rear-mounted ladders provide accessibility to the hoppers, improving the sightline of the fill and flow status. Cleanout is quick and easy, with steep 40 degree fast-flow, stainless steel sides.

exceptional discharge rates

Truck or trailer mounted, Willmar’s side-shooting tender can move up to two tons of material a minute. Large diameter 10-inch (25.4 cm) augers and steep 40° sloped sides allow moves materials quickly and efficiently. Discharge rates range from 2,400 pounds (5,280 kg) of urea per minute to 4,000 pounds (8,800 kg) of potash per minute.

convenient controls

Separate controls for on/off horizontal and side discharge as well as fold/unfold and raise/lower auger control are located on the front left catwalk. The one-piece, adjustable swing away auger engages with a spring-loaded back to eliminate spillage. Auger on/off controls and raise/lower controls are conveniently located on the left rear corner of the tender. The self-contained hydraulic system is PTO driven and has a 10-gallon (37,85 L) reservoir.

Easy Access

Exceptional Discharge Rates

Convenient Controls

See all the Willmar Features

Download a PDF in ENGLISH or FRENCH

Compare Willmar with Other Brands

See how Willmar models stack up against the competition


  S-150 S-500 S-600 / S-800 Side-Discharge Rear Discharge
Narrow Track Model N/A S-500NT S-600NT N/A N/A
General Specifications
Hopper Capacity Struck/Heaped S-150:
Struck - 49.6 cu ft
(1.40 m3)
Heaped - 53.6 cu ft
(1.51 m3)

 Struck - 152 cu ft
(4.32 m3)
Heaped - 167 cu ft
(4.73 m3)		 S-600:
Struck - 192 cu ft
(5.46 m3)
Heaped - 210 cu ft
(5.95 m3)

S-800:
Struck 244 cu ft
(6.90 m3)
Heaped - 264 cu ft
(7.47 m3)		 16-Ton
Struck - 516 & 774 cu ft
(14.6 m3 & 21.9 m3)
Heaped - 570 & 885 cu ft
(16.1 m3 & 24.2 m3)

24-Ton
Struck - 516 & 774 cu ft
(14.6 m3 & 21.9 m3)
Heaped - 570 & 885 cu ft
(16.1 m3 & 24.2 m3)
 10-Ton:
Struck - 340 & 500 cu ft
(9.63 & 14 m3)
Heaped - 380 & 560 cu ft
(10.76 & 16 m3)

1600:
Struck - 340 & 500 cu ft
(9.63 & 14 m3)
Heaped - 380 & 560 cu ft
(10.76 & 16 m3)
Weight Empty S-150:
1,470 lbs
(688 kg)		 2,150 lbs (977 kg) S-600: 3,100 lbs
(1,409 kg)

S-800: 3,400 lbs
(1,542 kg)		 16-Ton: 4,940 lbs
(2,240 kg)

24-Ton: 4,940 lbs
(2,240 kg)
10-Ton: 2,280 lbs
(1,034 kg)

1600: 2,720 lbs
(1,235 kg)
Maximum Gross Weight S-150:
7,000 lbs (3,175 kg)		 14,000 lbs (6,363 kg) S-600: 16,500 lbs
(8,250 kg)

S-800: 20,000 lbs
(9,072 kg)		 - - - -
Hopper Compartments - - - - - - 16-Ton:
4 @ 142.5 cu ft (4.025 m3)

24-Ton:
6 @ 147.5 cu ft (4.033 m3)		 10-Ton:
2 @ 170 cu ft (4.81 m3)

1600:
2 @ 250 cu ft (7.08 m3)
Hopper Construction S-150: 409 Stainless Steel 409 Stainless Steel S-600: 409 Stainless Steel

S-800: 409 Stainless Steel		 16-Ton:
14-gauge 409 Stainless Steel

24-Ton:
14-gauge 409 Stainless Steel		 10-Ton:
12-gauge 409 Stainless Steel

1600:
14-gauge 409 Stainless Steel
Dimensions Overall Length: 171 in (434.3cm)
Overall Height: 54 in (137.2 cm)
Hopper Length: 96 in (243.8 cm)
Hopper Width: 60 in (152.4 cm)
Hopper Length: 23.8 in (60.4 cm)
 Overall Length: 181 in (459.7 cm)
Overall Height: 80 in (203.2 cm)
Hopper Length: 92 in (233.6 cm)
Hopper Width: 96 in (243.8 cm)
Hopper Length: 45.25 in (114.94 cm)
 Overall Length: 218.75 in (555.6 cm)
Overall Height: 82 in (208.2 cm)
Hopper Length: 92 in (233.6 cm)
Hopper Width: 120 in (304.8 cm)
Hopper Length: 45.25 in (114.9 cm)
 16-Ton:
Length: 192 in (488 cm)
Height Above Truck Frame: 82.5 in (209.6 cm)
Width: 92 in (233.6 cm)
Slope: 40° min. slope angle

24-Ton:
Length: 288 in (731.5 cm)
Height Above Truck Frame: 82.5 in (209.6 cm)
Width: 92 in (233.6 cm)
Slope: 40° min. slope angle
 10-Ton:
Length:144 in (365.8 cm)
Height Above Truck Frame:82 in (208.3 cm)
Width:94 in (238.8 cm)
Slope:40° min. slope angle

1600:
Length: 192 in (488 cm)
Height Above Truck Frame: 87.7 in (223 cm)
Width: 96 in (244 cm)
Slope: 40° min. slope angle
Pull-Type Spreader Drive Systems
Conveyor Chain 7-in wide, 304 stainless steel with 1-in x 1-in (2.54cm2) mesh 7-in wide, 304 stainless steel with 1-in x 1-in (2.54cm2) mesh 7-in wide, 304 stainless steel with 1-in x 1-in (2.54cm2) mesh - N/A - - N/A -
Drive Chain RC-2050, 304 stainless steel conveyor drive chain
RC-50, 304 stainless steel ground drive chain		 RC-2050, 304 stainless steel conveyor drive chain
RC-50, 304 stainless steel ground drive chain		 RC-2050, 304 stainless steel conveyor drive chain
RC-50, 304 stainless steel ground drive chain		 - N/A - - N/A -
Conveyor Chain Engage/Disengage Mechanically, with rope control from driver’s seat Mechanically, with rope control from driver’s seat Mechanically, with rope control from driver’s seat - N/A - - N/A -
Drives 540 rpm PTO 540 rpm PTO
540/1000 rpm, dual-drive PTO
ASM: 1000 rpm, 1.75-in (4.5 cm), 20-tooth PTO
Engine Drive: 8hp (5.9 kW) Honda		 540 rpm PTO
540/1000 rpm, dual-drive PTO
ASM: 1000 rpm, 1.75-in (4.5 cm), 20-tooth PTO
Engine Drive: 8hp (5.9 kW) Honda		 - N/A - - N/A -
Side/Rear Discharge Auger Specifications
Side or Rear Auger Dimensions - NA - - NA - - NA - SIDE

16-Ton
Length: 17 ft (5.18 m)
Diameter: 10 in (25 cm)

24-Ton:
Length: 17 ft (5.18 m) or 20 ft (6.1 m)
Diameter: 10 in (25 cm)
 REAR

10-Ton
Length: 19 ft (5.8 m)
Diameter: 10 in (25 cm)

1600
Length: 19 ft (5. 8 m) or 21 ft (6.4 m)
Diameter: 10 in (25 cm)
Hopper and Auger Dimensions - NA - - NA - - NA - 17 FOOT (16-Ton & 24-Ton)

Auger Raised: 124 in (315 m)
Auger Lowered: 79 in (200.7 cm)
Auger Up: 108 in (274.3 cm)
Auger Down: 126 in (320 cm)
Auger In Transit: 21 ft (6.4 m)

20 FOOT (24-Ton Only)

Auger Raised: 180.7 in (458.9 m)
Auger Lowered: 101.75 in (258.4 cm)
Auger Up: 127.56 in (324 cm)
Auger Down: 178.83 in (454.2 cm)
Auger In Transit: 21 ft (6.4 m)
 19 FOOT (10-Ton & 1600)

Auger Raised: 117.5 in (298.5 m)
Auger Lowered: 89.5 in (227.3 cm)
Auger Up: 138 in (350.5 cm)
Auger Down: 107.5 in (273. cm)
Auger In Transit: 284.5 - 300 in (722.6 cm - 762 cm)

20 FOOT (1600 Only)

Auger Raised: 117 in (297.2 m)
Auger Lowered: 78.75 in (200 cm)
Auger Up: 138 in (350.5 cm)
Auger Down: 95.5 in (242.6 cm)
Auger In Transit: 340 - 358 in (863.6 cm - 909.3 cm)
