TG7300 TG8300 TG9300 TG9300B TG8400
Engine and Drive Systems
Wheels 3 Wheel 3 Wheel 3 Wheel 3 Wheel 4 Wheel
Transmission AGCO's Continuously Variable Transmission (CVT) AGCO's Continuously Variable Transmission (CVT) CAT TA-22 Powershift transmission with
16 forward gears and 3 reverse gears 		AGCO's Continuously Variable Transmission (CVT) AGCO's Continuously Variable Transmission (CVT)
Engine AGCO Power 8.4 Citius CTA EPA Tier 4i AGCO Power 8.4 Citius CTA EPA Tier 4i CAT® C-13 Tier III Turbocharged Diesel AGCO Power 98 AWF Tier 4F AGCO Power 8.4 CTA EPA Tier 4i
Displacement 513 cu in (8.4 L) 513 cu in (8.4 L) 763 cu in (12.5 L) 598 cu in (9.4 L) 513 cu in (8.4 L)
Horsepower 330 hp (246.1 kW) 365 hp (272.2 kW) 425 hp (317 kW) 425 hp (317 kW)/td> 365 hp (272.2 kW)
Peak Horsepower 361 hp (269.2 kW) 393 hp (293.1 kW) 459 hp (342 kW) 452 hp (337 kW) 393 hp (293.1 kW)
Torque 1,121 ft-lbs
(1,519.9 Nm) @ 1,500 rpm		 1,136 ft-lbs
(1,540.2 Nm) @ 1,500 rpm		 1,510 ft-lbs
(2,047 Nm) @ 1,400 rpm		 1,416 ft-lbs
(1,921 Nm) @ 1,500 rpm		 1,136 ft-lbs
(1,540.2 Nm) @ 2,100 rpm
Application Systems
Liquid System 1,800-gal (6,813 L) liquid system with
TerraGator Boom or optional Benson Boom II™		 1,800-gal (6,813 L) liquid system with
TerraGator Boom or optional Benson Boom II™		 2,400-gal (9,085 L) liquid system with
standard Benson Boom II™		 2,400-gal (9,085 L) liquid system with
standard Benson Boom II™		 1,800-gal (9,085 L) liquid system with
TerraGator Boom or optional Benson Boom II™
Spinner Systems New Leader™ L4000 G4 Spinner New Leader™ L4000 G4 Spinner New Leader™ L4000 G4 Spinner New Leader™ L4000 G4 Spinner New Leader™ L4000 G4 Spinner
Air Systems AirMax Precision™, AirMax Precision 2™, Air Spreader™, Soilection Twin Bin® AirMax Precision™, AirMax Precision 2™, Air Spreader™, Soilection Twin Bin® AirMax Precision™, AirMax Precision 2™, Air Spreader™, Soilection Twin Bin®, Soilection Four Bin® AirMax Precision™, AirMax Precision 2™, Air Spreader™, Soilection Twin Bin®, Soilection Four Bin® AirMax Precision™, AirMax Precision 2™, Air Spreader™, Soilection Twin Bin®
Technology Solution
Controller RAVEN™ SCS 5000
VIPER PRO™		 RAVEN™ SCS 5000
VIPER PRO™		 RAVEN™ SCS 5000
VIPER PRO™		 RAVEN™ SCS 5000
VIPER PRO™		 RAVEN™ SCS 5000
VIPER PRO™
Assisted Steering SMARTRAX™ SMARTRAX™ SMARTRAX™ Dynamic load sense SMARTRAX™
Variable Weight Control FALCON VT (by AGCO) FALCON VT (by AGCO) FALCON VT (by AGCO) FALCON VT (by AGCO) FALCON VT (by AGCO)
Telemetry System AGCOMMAND® AGCOMMAND® AGCOMMAND® AGCOMMAND® AGCOMMAND®

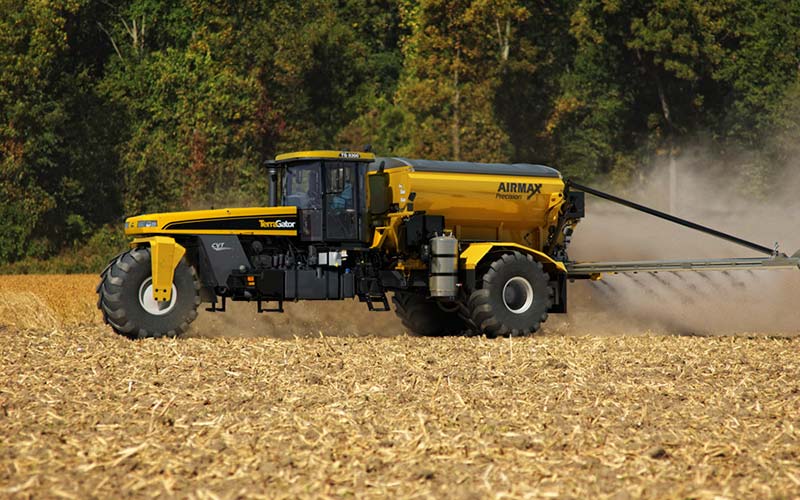

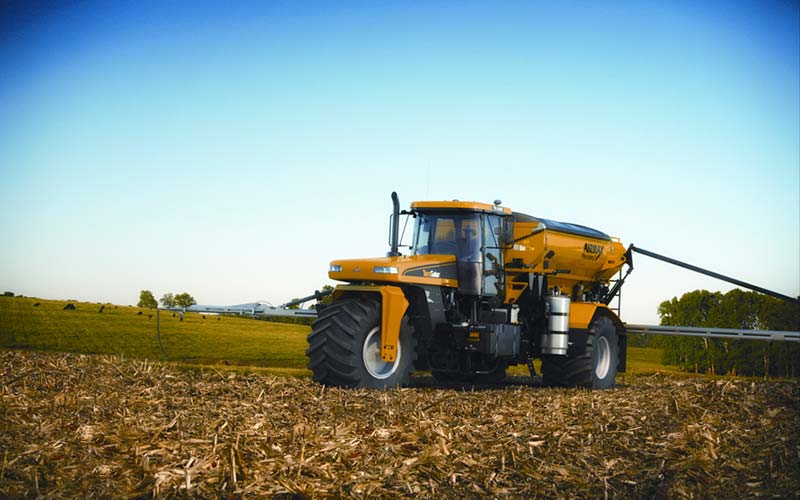

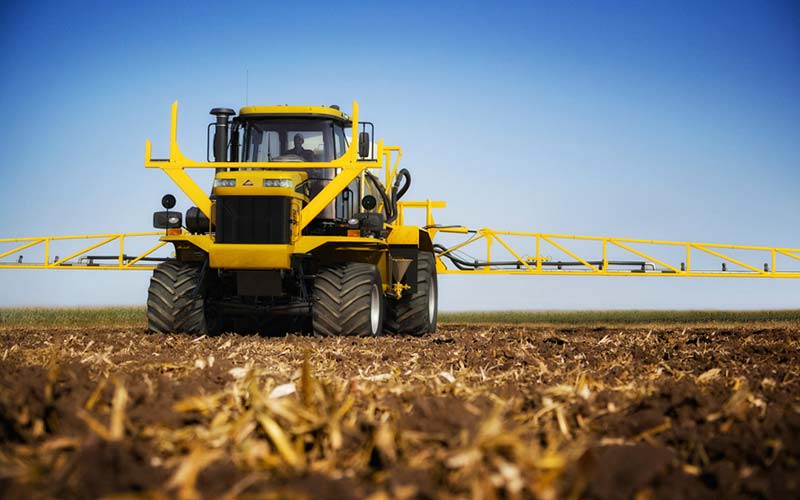

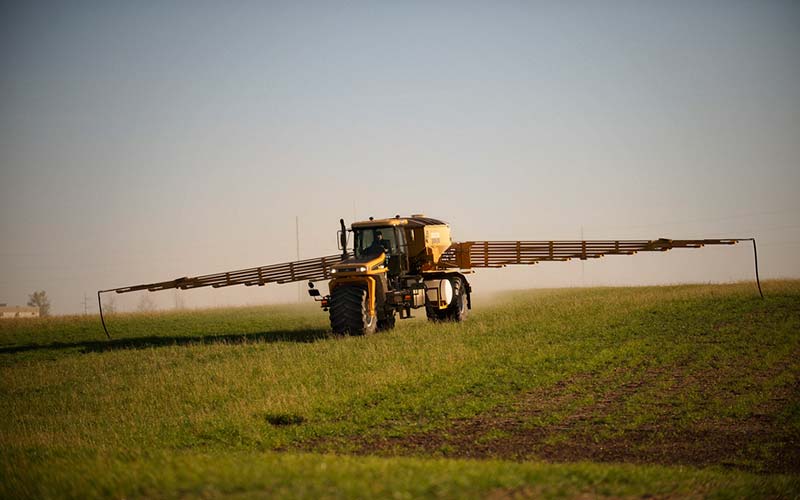

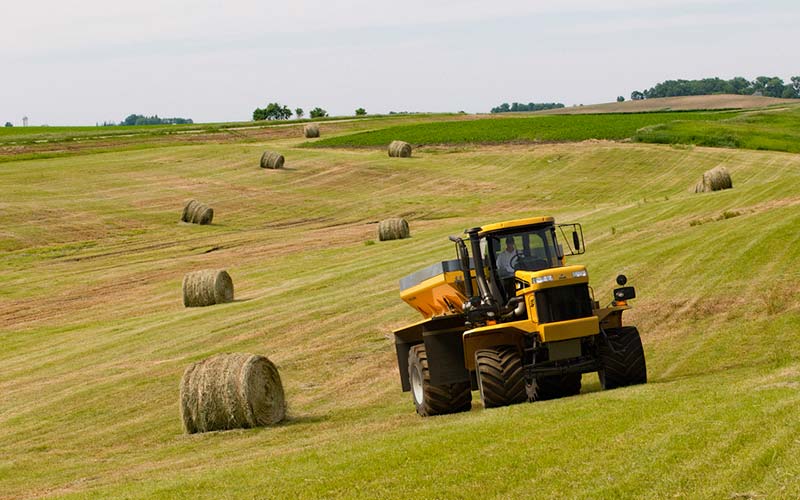

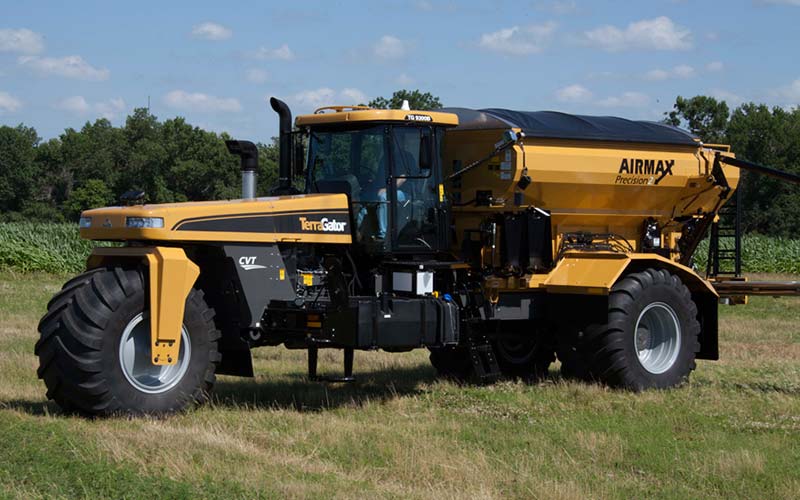

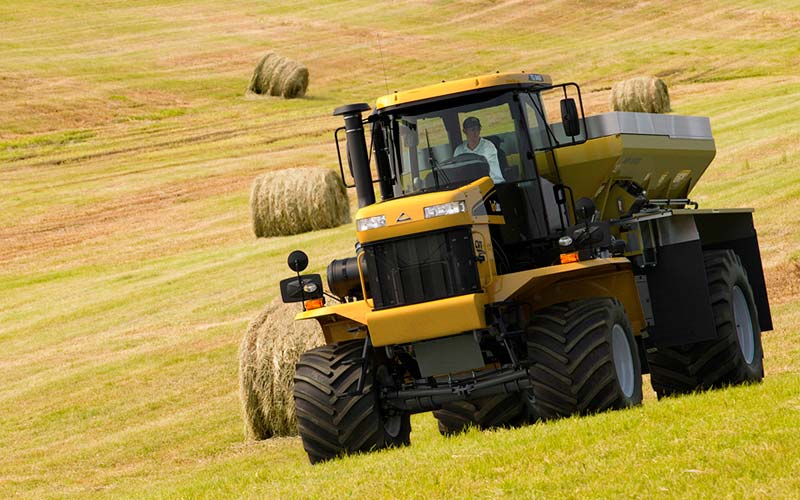

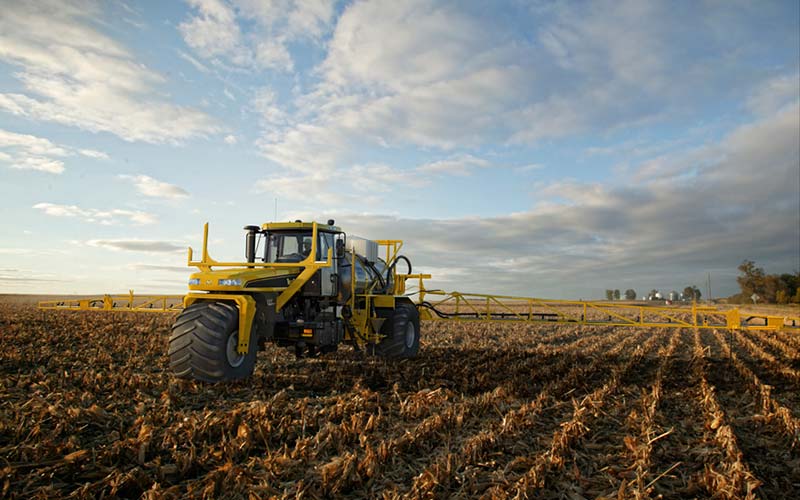

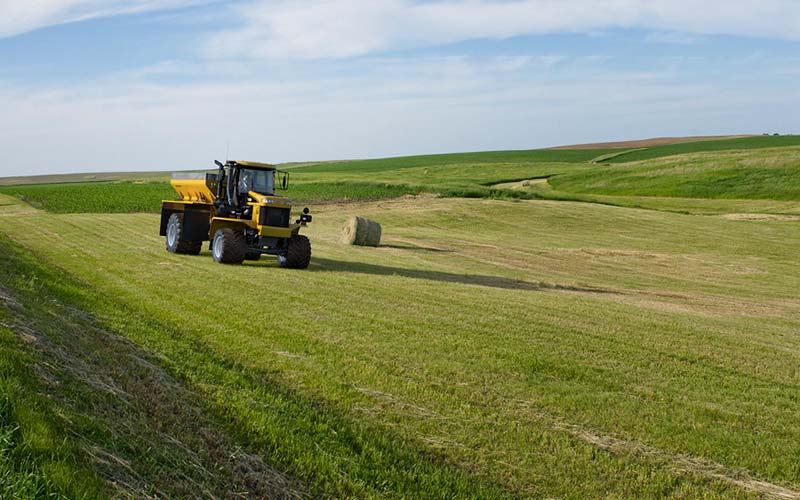

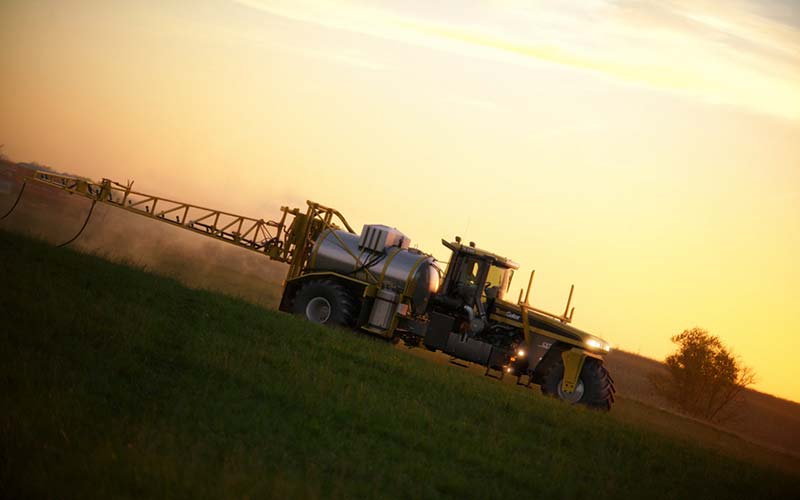

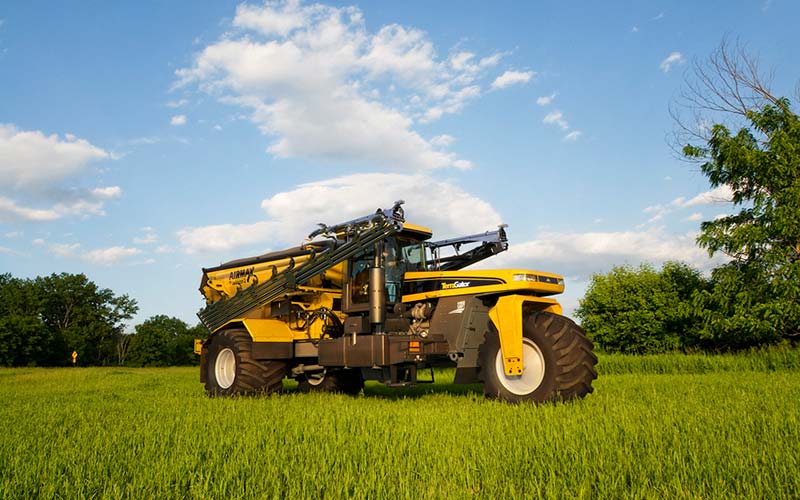

  View TG7300 Images View TG8300 Images View TG9300 Images View TG9300s Images View TG8400 Images
